Due to extended component shortages - we expect this product to remain in limited production for the remainder of 2024. Limited production means we will offer inventory on a first come first serve basis ship to US customers only unless agreed to otherwise.

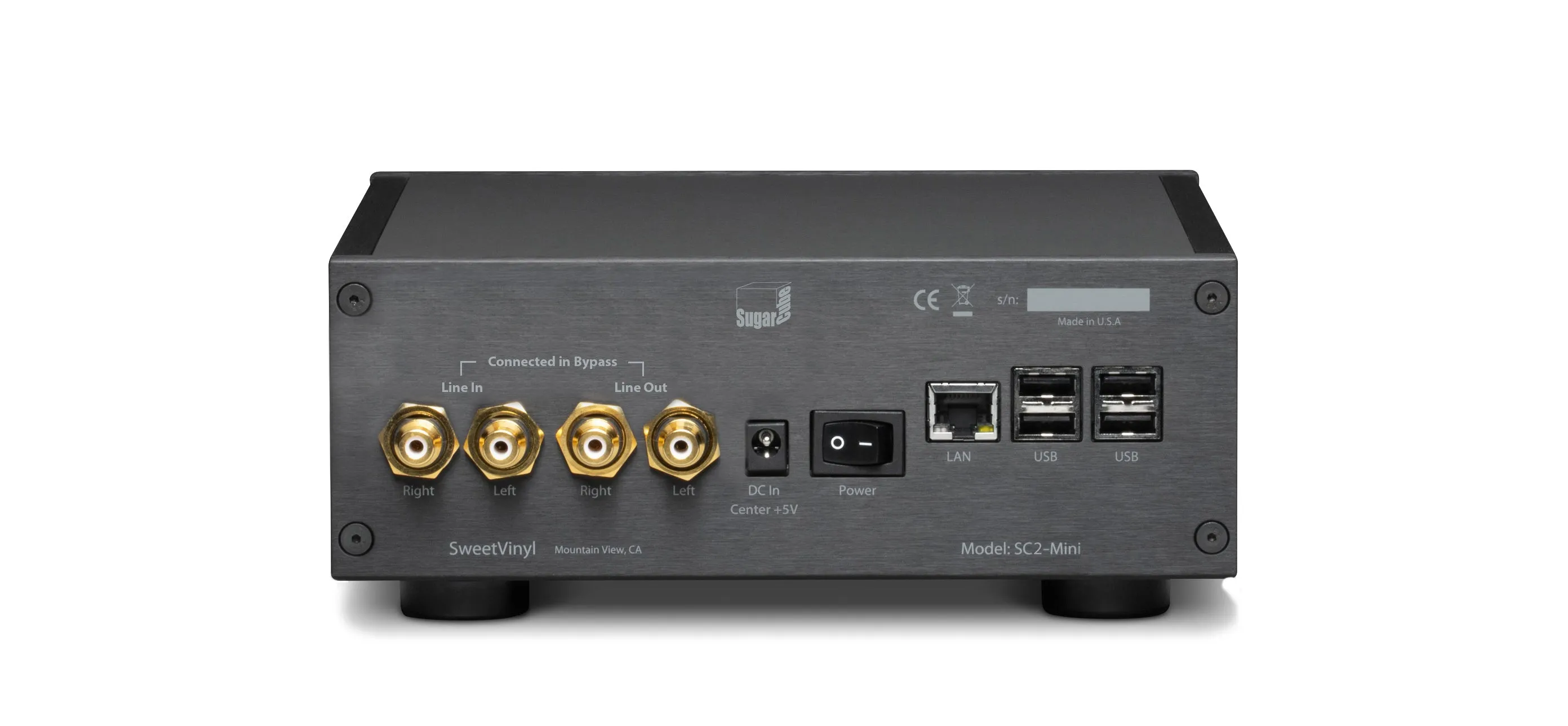

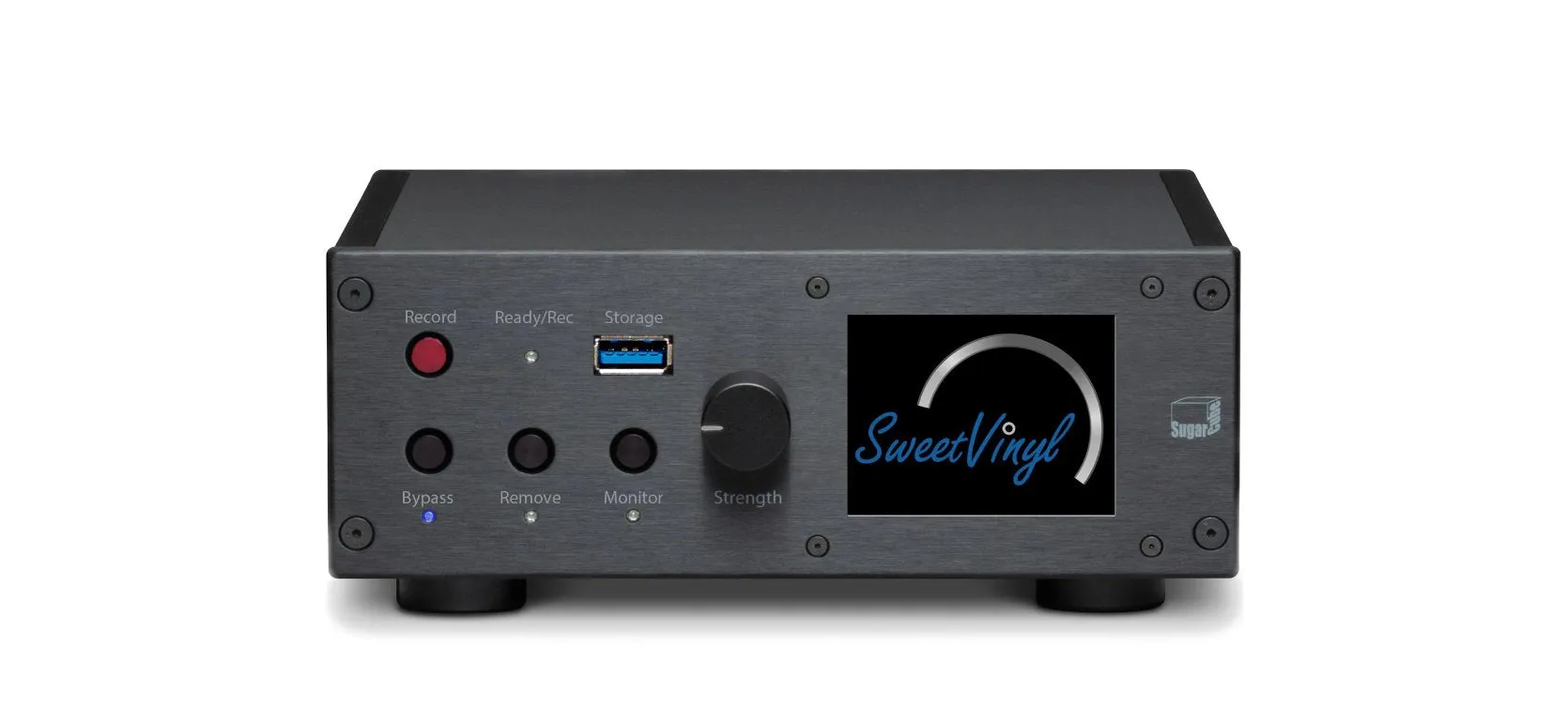

The SC-2 Mini integrates SweetVinyl’s latest version 2.0 recording functions from the top-of-the-line SC-2 in a smaller form factor. The SC-2 Mini is the line’s best value as it incorporates Discogs-based Album Metadata Tagging as well as easy to use track splitting; push-button recording, USB-3 port for USB drives, & LCD display along with all the features of the SC-1 Mini. Rear panel features gold-platted RCA connectors, an RJ-45 Ethernet port, and USB-A connections.
The SC-2 Mini provides hours of enjoyment from previously unplayable LPs in any collection, while creating digital copies in virtually any digital format.
The SC-2 Mini’s flawless Click & Pop removal process benefits from the latest algorithm update with version 2.0 software which also includes SweetVinyl’s latest LP recording system. The iOS, Android, and laptop apps provide remote control of the Click & Pop removal and device bypass. The recording and track splitting functions work best from the laptop app. The front-panel USB3 port will accommodate any USB storage device for saving recordings in any digital format (except DSD.)
The soundstage is virtually indistinguishable when engaged or in Analog Bypass.
| 2.0 Click & Pop Algorithm | LCD Graphics Display |
| 192K/24 Bit AKM A/D-D/A | USB3-A Front-panel Port |
| Device Bypass via Internal Relay | USB2-A Rear-panel Ports |
| Adjustable Removal Strength | RJ45 Ethernet Port |
| Click and Pop Removal Monitor | USB WiFi Adapter |
| Gold Plated RCA Interconnects | Excellent Build Quality |
| iOS, Android, and Web Apps | Compact Size |
| Front-panel Pairing with App | Black Only |
| Front Panel Recording | Discogs Metadata Lookup |
Electronics
- Line-In Maximum Level = 20 dBu (7.7 Vrms)
- Line-Out Level = Line-In level
- THD N = 0.0025% (A-weighted)
- Frequency Response = 10Hz to 60kHz
- DC in = 5 volts, center-pin positive
- Average Power Dissipation = 8 watts
General
- Dimensions: WxHxD: 8” x 8” x 3.5”
- Weight: 6 pounds (7 lbs. in box)
Connections
- 2x Line-In RCA (Left–Right)
- 2x Line-Out RCA (Left–Right)
- 1x USB3-A Front-panel (for USB Storage)
- 4x USB2-A Rear-panel
- 1x Ethernet: Gigabit
Recording
- Sample rates: 44.1k, 48k, 88.2k, 96k, 176.4k, 196k
- bit width: 16, 24
- formats: WAV, AIFF, FLAC, ALAC, MP4, AAC, MP3 I
- Internal workspace: holds up to 8 album sides
- Output via USB3 frontpanel or LAN to workstation
- Automatic online access to album metadata;
- Semi-automated track-spliting
Download the SC-2 Mini Datasheet
